CoLateral Engineering

by CoLateral

A CoLateral module for engineering work, currently in development.

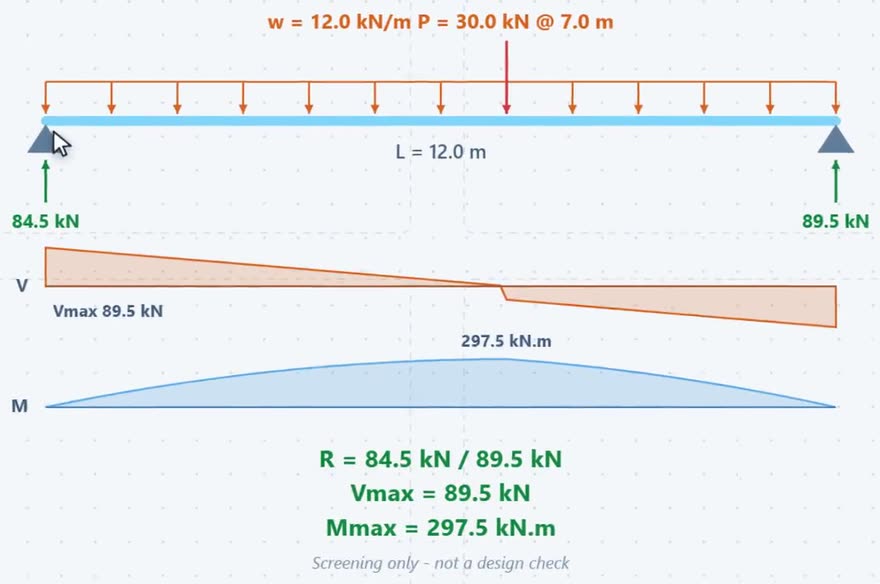

  1. A sketched beam on supports over a 12.0 m span, under a 12.0 kN per metre load and a 30.0 kN point load, with reactions of 84.5 kN and 89.5 kN, shear and moment diagrams under it, and the readout closing on the line Screening only, not a design check.

    A freehand stroke read as a beam, with the span, the loads and the reactions on it. The readout carries its own boundary: screening only, not a design check.

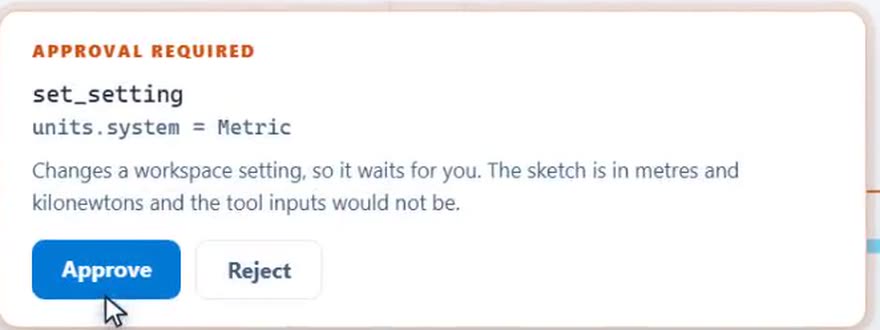

  2. An Approval required card for set_setting, units.system set to Metric, with Approve and Reject buttons, beside the orchestrator log that called it.

    Changing a workspace setting is gated, so it stops and shows the exact call before anything moves.

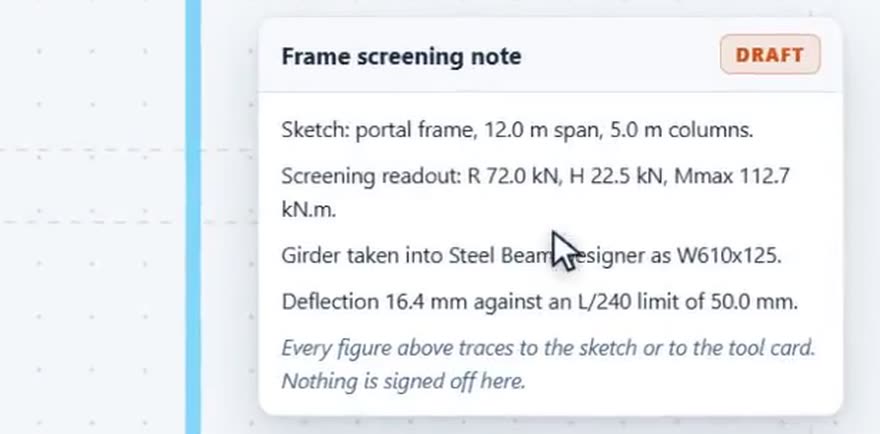

  3. A Frame screening note card marked Draft, listing the portal frame span, the screening readout, the girder section and the deflection.

    What comes back is a card marked Draft. Nothing on it is signed off, and the job is invented for the film.

Three frames from the film, cropped to a size a phone can read.

For the clearest view, play the film full screen with your phone turned sideways.

A rendered illustration of the workflow with invented sketches and staged replies.
About this film

A rendered illustration of the workflow with invented sketches and staged replies. Nothing in it calculates forces for a real job, sizes a member, checks a design code or produces an engineering result, and every note it shows is a draft for review.

  • A stroke read as a beam, screening only.SketchA stroke read as a beam, screening only.
  • A settings change stops and asks first.ApprovalA settings change stops and asks first.
  • What comes back is a card marked Draft.DraftWhat comes back is a card marked Draft.

Who made it

CoLateral publishes this module. Their page lists everything they publish.

View CoLateral
DetailsPermissions and platform share

What it asks permission to do

No module manifest has been published yet. Permissions and version history appear here when it ships.

Platform share

Creator module sales can include a platform share for CoLateral. The seller’s applicable rate is agreed before publication and may vary by creator or module. Buyers review the listed price and any tax at checkout.
